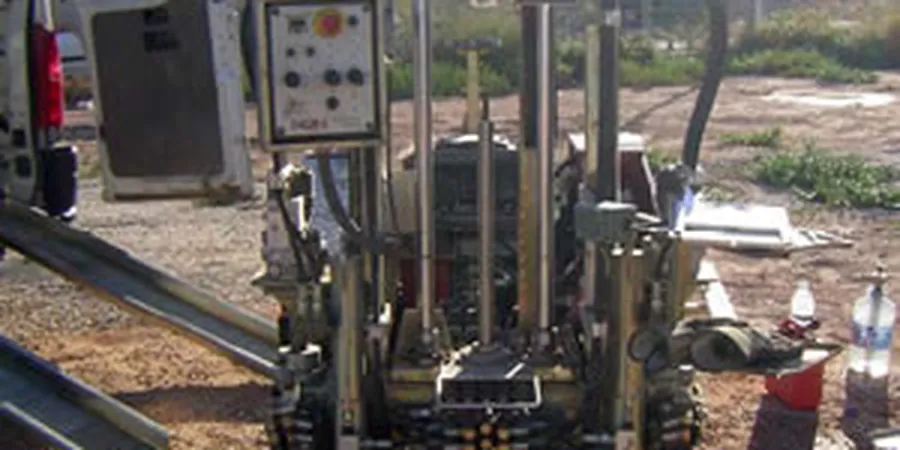

Darwin sits on a complex mix of deeply weathered phyllite, sandstone and thick estuarine clay, with groundwater often within 2 to 3 metres of the surface during the wet season. The CPT (Cone Penetration Test) cuts through that uncertainty, delivering continuous tip resistance and pore pressure data without disturbing the sample. In East Arm, Berrimah and the CBD, where soft Holocene muds overlie residual soils, we combine the CPT with in-situ permeability testing to quantify drainage characteristics before designing basement slabs. A 20-tonne truck-mounted rig handles the reactive clays and lateritic caps common across the Darwin region, pushing to refusal or 25 metres where conditions allow. The result is a clean profile of undrained shear strength and relative density that engineers need for cyclone-rated footings.
CPT in Darwin delivers 3,000 data points per 20-metre push — no other field test gives you that resolution on layered estuarine profiles.
Technical details of the service in Darwin
Risks and considerations in Darwin
AS 1726 and AS 4678 set clear rules for site investigation in tropical environments, and Darwin’s cyclic wetting-drying profile demands more than a desktop study. Soft estuarine clay beneath the city centre reaches 12 metres thick in places, producing excess pore pressure that can halve the effective stress under rapid loading. A CPT program that skips dissipation testing misses the consolidation behaviour of these soils — and that oversight translates directly into long-term settlement claims on framed structures. We also check for partial drainage effects in silty zones, because interpreting undrained behaviour where drainage occurs can overestimate strength by 30 percent or more. The Northern Territory Building Advisory Services expects CPT logs with corrected qt and soil behaviour type index (Ic) for any project exceeding two storeys on reclaimed or low-lying land.
Our services
Our Darwin CPT package includes two service levels designed for the Top End construction cycle:
Piezocone profiling to refusal
Single or multi-point CPTu pushes with real-time pore pressure measurement. Logs include corrected cone resistance, sleeve friction, friction ratio and soil behaviour type classification. Ideal for high-set residential, tilt-panel commercial and industrial sheds in Palmerston and Coolalinga.
Dissipation and interpretation package
Pore pressure dissipation tests at 2 to 4 depth intervals per borehole, plus full geotechnical report with undrained shear strength profiles, relative density estimates and liquefaction screening using the Robertson (1990) method. Required for deep basements, bridge abutments and any structure regulated under the NT Planning Scheme.
Frequently asked questions
What depth can a CPT rig reach in Darwin soils?
In Darwin’s estuarine clay we routinely reach 20 to 25 metres. In dense lateritic gravels or weathered rock the push stops earlier, typically at 8 to 15 metres when cone refusal occurs. We use a 20-tonne truck-mounted rig which provides the reaction force needed for deeper penetration in soft ground.
How much does a CPT test cost in Darwin?
CPT investigation in Darwin generally runs AU$230 to AU$350 per metre, depending on the number of pushes, travel to site and whether you need dissipation testing. A typical single-push program with a short report falls in that range.
Can CPT detect liquefaction potential in Darwin?
Yes. The CPT measures tip resistance and sleeve friction continuously, which feeds directly into the Robertson (1990) and Boulanger-Idriss (2014) liquefaction screening methods. We apply these to assess cyclic resistance ratio for Darwin’s seismic hazard, which is moderate but relevant for critical infrastructure.
Do you need a borehole alongside CPT in Darwin?
We recommend at least one borehole per site to calibrate the soil behaviour type index against physical samples. Darwin’s residual soils can produce ambiguous Ic values, and a companion SPT borehole with laboratory testing removes that ambiguity.
How quickly can you mobilise a CPT rig in the Darwin area?
We keep a rig stationed in the greater Darwin region year-round. For most sites between Howard Springs and the CBD we can be on the ground within 3 to 5 working days, subject to wet-season access and any sacred site clearance requirements.
